Pipeline Pigging Magnet

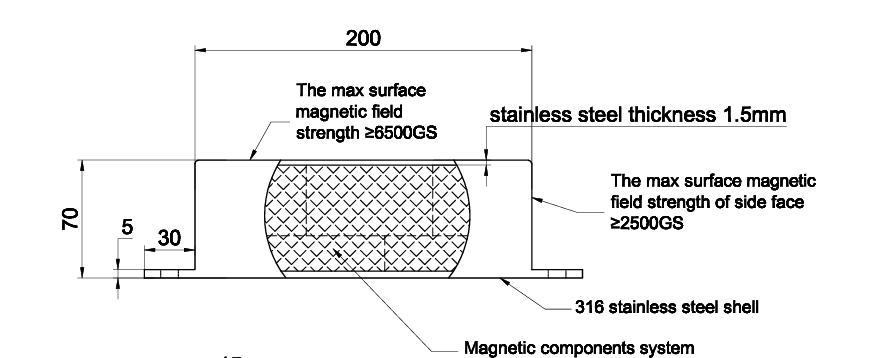

specification: 194x54x64
Working temp.: 120℃
sample time: 7-10days.

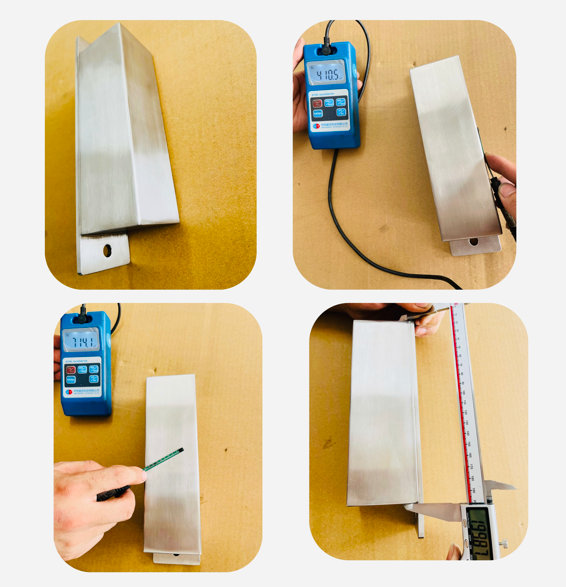

Upper Surface Gauss: 7800Gs
Side Surface Gauss: 3700Gs
Perfect Welding of Fully Covered Stainless Caps
Applications：
To operate valves
To operate magnetic non-intrusive pig signaler detection devices
To remove ferrous debris from the pipeline
Magnetic Pipeline Pigs
Pipeline magnetic pigs are mandrel bodied pigs fitted with high strength neodymium magnet boxes.
Easy to install and retrieve in the flowline or ditch.
To achieve unmatched magnetic field strength and directional efficiency.
Engineered for oil & gas, water, chemical, and industrial pipelines, this robust tool ensures optimal ferrous debris removal, enhances operational safety, and prolongs pipeline lifespan through proactive contamination control.
Applications
Pre-Inspection Cleaning Prepares pipelines for ILI (In-Line Inspection) by removing obstructive ferrous particles.
Preventive Maintenance Reduces wear on pumps, valves, and compressors in oil refineries, LNG terminals, and offshore platforms.
Hazard Mitigation Prevents blockages and leaks in high-risk sectors (e.g., sour gas pipelines, subsea systems).
Post-Construction Debris Clearance: Efficiently captures residual metal fragments after pipeline installation or repairs.
Magnetic Flux Leakage Detection (MFLD) Pigs:
This corrosion measurement function uses powerful magnets to saturate the pipe wall with magnetism.
Sensors between the poles of the magnets detect disturbances caused by metal loss due to corrosion or other mechanical damage.
